Facility status

We will support customers' green management and take the lead in
solving environmental pollution problems by recycling waste resources.

Facility status

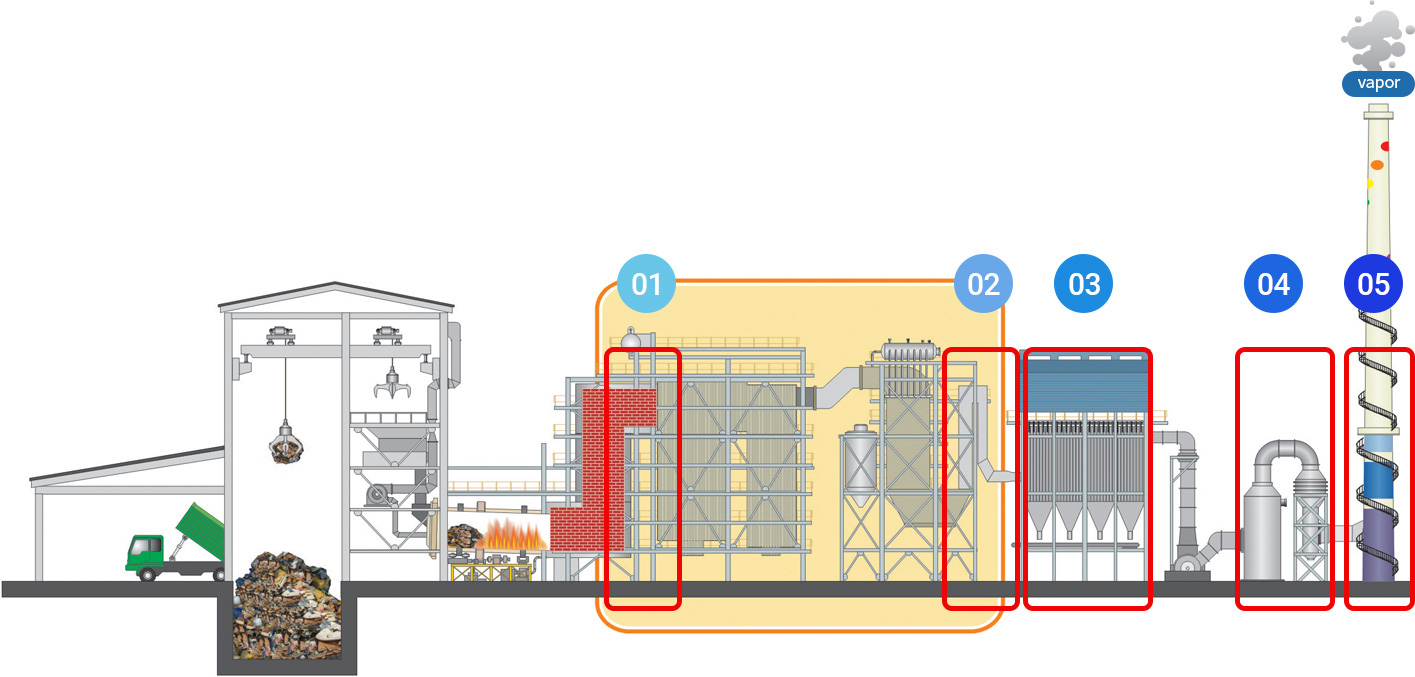

Environmental pollution reduction facility
Environmental pollution reduction facility

  • Step.01

    SNCR
    (catalytic degassing equipment)

  • Step.02

    Slaked lime/activated carbon injection facility

  • Step.03

    Filter dust collection facility

  • Step.04

    Cleaning and dust collection facility

  • Step.05

    TMS

TMS metrics

  • TMS metrics

  • Sulfur oxide (Sox)

  • Nitrogen Oxide (Nox)

  • Carbon monoxide (CO)

  • Hydrogen chloride (HCI)

  • dust

Main function

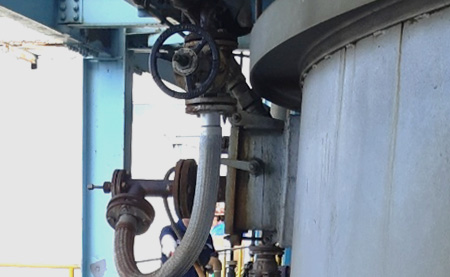

  • 01. SNCR (catalytic denitrification facility)

    Dioxins and NOx are removed by adding ammonia water (25%)

  • 02. Slaked lime/activated carbon injection facility

    Removal of pollutants other than dioxin due to acid gas neutralization and adsorption reaction after injection of highly reactive slaked lime / activated carbon

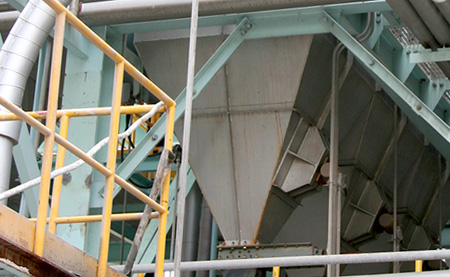

  • 03. Filter dust collection facility

    Removal of particulate matter (dust, heavy metal, etc.)

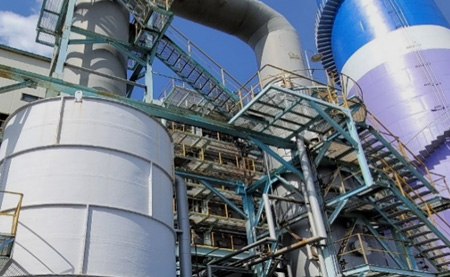

  • 04. Cleaning and dust collection facility

    Sodium hydroxide (50%) is added to remove gaseous substances (SOx, HCl, etc.)

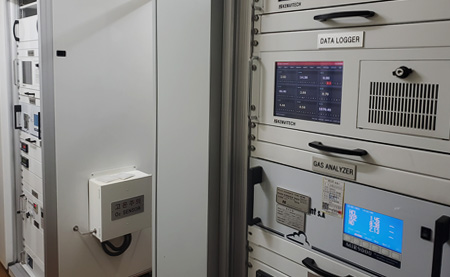

  • 05. TMS measuring instrument

    Transmission of real-time data of specific air pollutants to the Korea Environment Corporation → Emission of water vapor
